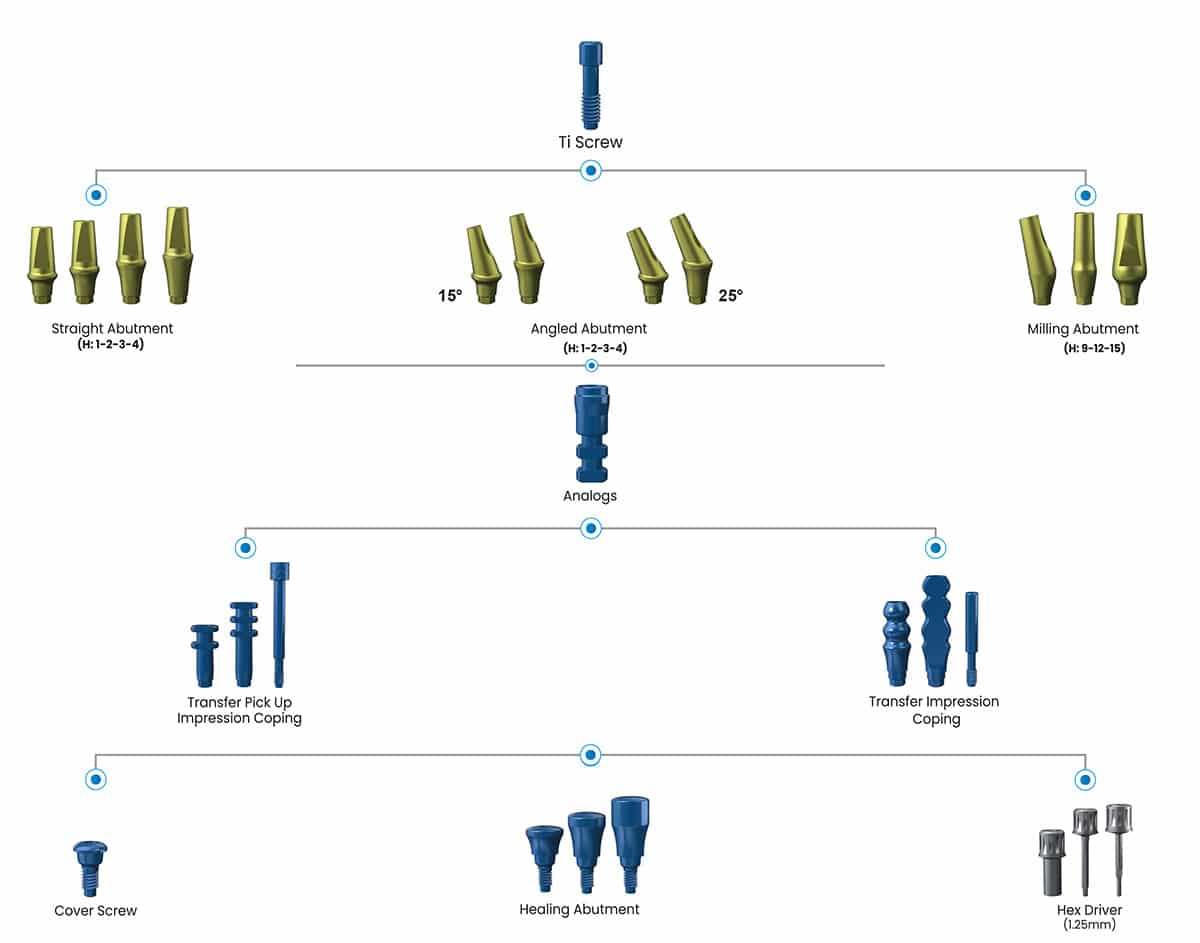

Cementable Solutions
Simante Solutions are crucial for the durability and compatibility of implants. They are typically made from titanium or titanium alloys. Titanium is a biocompatible metal, resistant to corrosion, and well-tolerated by the body with a low risk of allergies. Simante materials provide durability over the years due to their high strength, ensuring the implant's compatibility.
Straight Abutment / Standard
| REF NO | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XBA4501 | 4.5 | 1 |
| XBA4502 | 4.5 | 2 |
| XBA4503 | 4.5 | 3 |
| XBA4504 | 4.5 | 4 |
◼️ Titanium GRADE V ◼️ Max 30 NCM
Straight Abutment / Wide
| REF NO | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XKB5501 | 5.5 | 1 |
| XKB5502 | 5.5 | 2 |
| XKB5503 | 5.5 | 3 |
| XKB5504 | 5.5 | 4 |
◼️ Titanium GRADE V ◼️ Max 30 NCM

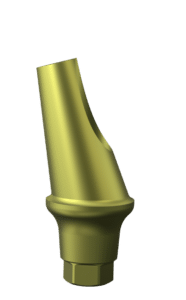

Angled Abutment / Standard- 15 °
| REF CODE | DIAMETER (Ø mm) | HEIGHT (mm) |
|---|---|---|
| XA154501 | Ø 4.5 | 1 |
| XA154502 | Ø 4.5 | 2 |
| XA154503 | Ø 4.5 | 3 |
| XA154504 | Ø 4.5 | 4 |
◼️ Titanium GRADE V ◼️ Max 30 NCM

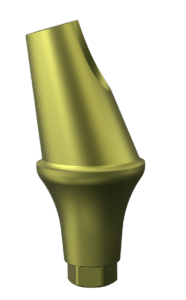

Angled Abutment / Wide 15 °
| REF NO | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XKB5501 | 5.5 | 1 |
| XKB5502 | 5.5 | 2 |
| XKB5503 | 5.5 | 3 |
| XKB5504 | 5.5 | 4 |
◼️ Titanium GRADE V ◼️ Max 30 NCM

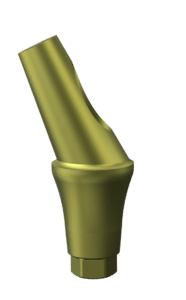

Angled Abutment / Standard - 25 °
| REF CODE | DIAMETER (Ø mm) | HEIGHT (mm) |
|---|---|---|
| XA154501 | Ø 4.5 | 1 |
| XA154502 | Ø 4.5 | 2 |
| XA154503 | Ø 4.5 | 3 |
| XA154504 | Ø 4.5 | 4 |
◼️ Titanium GRADE V ◼️ Max 30 NCM

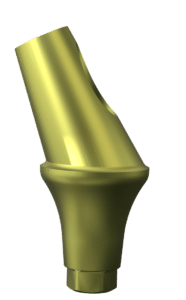

Angled Abutment / Wide 25 °
| REF NO | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XKB5501 | 5.5 | 1 |
| XKB5502 | 5.5 | 2 |
| XKB5503 | 5.5 | 3 |
| XKB5504 | 5.5 | 4 |
◼️ Titanium GRADE V ◼️ Max 30 NCM

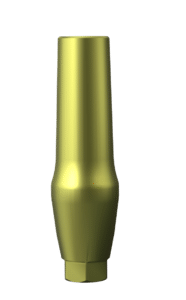

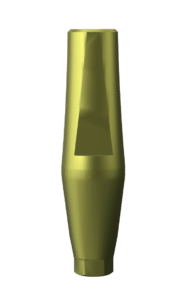

Milling Abutment / Standard
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XFA4509 | Ø 4.5 | 9 |
| XFA4512 | Ø 4.5 | 12 |
| XKF4515 | Ø 5.5 | 15 |

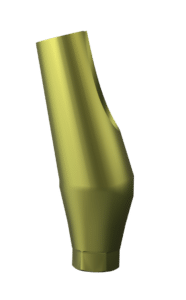

Milling Angled Abutment / 15° - 25°
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XFA15 | Ø 4.5 | 15° |
| XFA25 | Ø 4.5 | 25° |
Milling Abutment / Narrow
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XIF4012 | Ø 4 | 12 |

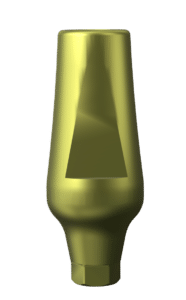

Milling Angled Abutment / Wide
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XKF5512 | Ø 5.5 | 12 |

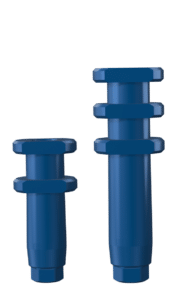

Transfer Pick up
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XATK4511 | Ø 4.5 | 11 |
| XATK4515 | Ø 4.5 | 15 |

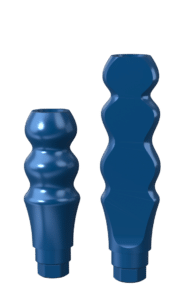

Transfer Impression Coping
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XKTK4511 | Ø 4.5 | 13 |
| XKTK4515 | Ø 4.5 | 15 |

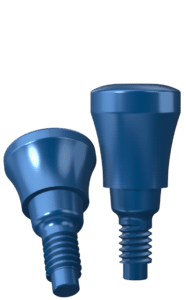

Healing Abutment / Standad
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XGF4502 | Ø 4.5 | 2 |
| XGF4503 | Ø 4.5 | 3 |
| XGF4505 | Ø 4.5 | 5 |
| XGF4507 | Ø 4.5 | 7 |

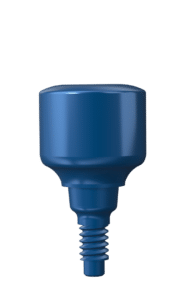

Healing Abutment / Wide
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XGF5502 | Ø 5.5 | 2 |
| XGF5503 | Ø 5.5 | 3 |
| XGF5505 | Ø 5.5 | 5 |
| XGF5507 | Ø 5.5 | 7 |

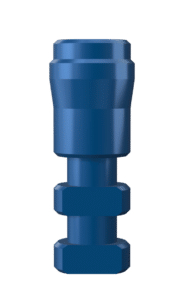

Analog
| REF CODE | Ø DIAMETER (mm) | HEIGHT (mm) |
|---|---|---|
| XANA | Ø 4 | 12 |
